Frequency • 450-470 MHz
A rugged monopole antenna particularly wellsuited to the harsh environments experienced on the underside of an aircraft. Features standard4-hole mounting, diecast metal base and radiator encased in glass laminate housing.
Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-00532 separately.
|

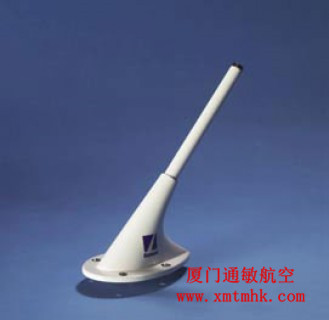

MODEL CI 177-20 UHF ANTENNA
|
|
|
Electrical
|
|
|
Frequency
|
450-470 MHz |
|
VSWR
|
2.0:1 Maximum |
|
Polarization
|
Vertical |
|
Radiation Pattern
|
Omni Directional
|
|
Impedance RF
|
50 Ohms
|
|
Power RF
|
30 Watts
|
|
Mechanical
|
|
|
Weight
|
0.7 lb. Maximum
|
|
Height
|
7.00 in. Maximum
|
|
Material
|
Diecast Metal base
|
|
Finish
|
Glossy White Polyurethane Paint
|
|
Connector
|
BNC (Female) |
|
Environmental
|
|
|
Temperature
|
-55ºC to +55ºC
|
|
Altitude
|
30,000ft.
|
|
Air Speed
|
450 Knots TAS at 25,000 ft.
|
|
Federal Specifications
|
|
|
FAA TSO
|
N/A
|
|
Enviromental RTCA
|
DO-160D
|
