Frequency 406-512 MHz
Wide band UHF antenna designed for high-performance aircraft over the full frequency range of 406-512 MHz. Low profile, blade-type antenna is encased in a low drag, low weight molded body to ensure high reliability. The CI 275 comes standard with a BNC connector. Other connectors available. See order option chart. Color is white standard.
Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-00532 separately.
|

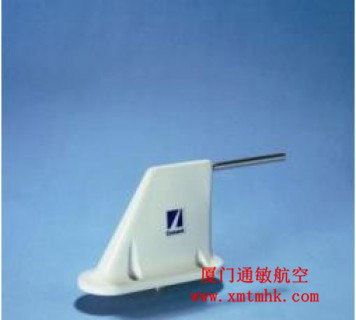

MODEL CI 275 SERIES UHF ANTENNA
|
|
|
Electrical
|
|
|
Frequency
|
406-512 MHz
|
|
VSWR
|
2.0:1 Maximum
|
|
Polarization
|
Vertical
|
|
Radiation Pattern
|
Equivalent of ¥ë / 4 Stub |
|
Impedance
|
50 Ohms
|
|
Power RF
|
50 Watts Average
|
|
Mechanical
|
|
|
Weight
|
0.5 lb. Maximum
|
|
Height
|
3.5 in. Maximum
|
|
Finish
|
Polyurethane Enamel
|
|
Material
|
Lexan Housing
|
|
Connector
|
BNC (Female)
|
|
Environmental
|
|
|
Temperature
|
-55¨¬C to +70¨¬C
|
|
Altitude
|
50,000 ft.
|
|
Air Speed
|
600 Knots TAS @ 25,000 ft
|
