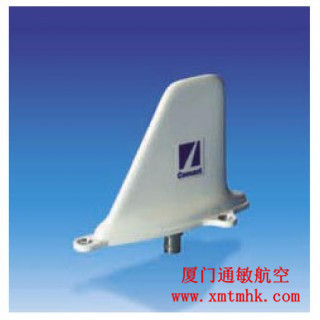

Comant CI 105-3 DME/Transponder antenna. Identical to the CI 105 in operating characteristics. Antenna configuration specifically designed for external applications using a three hole flange mounting.
Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-00532 separately.
Applications
Single and twin engine piston aircraft for applications of this antenna design. Consult your FBO or installation shop for best application information.
|
MODEL CI 105-3 DME/ TRANSPONDER
|
|
|
Electrical
|
|
|
Frequency
|
960 to 1220 MHz |
|
Polarization
|
Vertical
|
|
VSWR
|
1.5:1 960 to 1220 MHz |
|
Radiation Pattern
|
Equivalent of 1/4 wave stub
|
|
Impedance RF
|
50 Ohms
|
|
Resistance DC
|
Open Circuit
|
|
Power RF
|
2.5 KW Peak
|
|
Mechanical
|
|
|
Weight
|
0.24 lbs. Maximum
|
|
Height
|
3.31 in. Maximum
|
|
Material
|
Molded Radome
|
|
Finish
|
Polyurethane Enamel
|
|
Environmental
|
|
|
Temperature
|
-54°C to +55°C
|
|
Air Speed
|
450 Knots TAS at 25,000 ft.
|
|
Altitude
|
70,000 ft.
|
|
Federal Specifications
|
|
|
RTCA Environmental
|
DO-160C
|
|
FAA TSO
|
C66b, C74c
|
