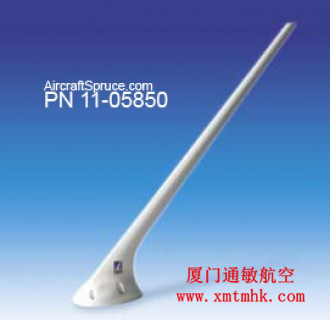

Comant’s ComDat dual function single engine antenna for VHF/GPS. Our patented technology provides 80 dB of VHF harmonic suppression allowing Comant to offer VHF and GPS in one radome without in-line filters. Designed as a “drop-in” replacement for common single engine teardrop footprint.
Designed for popular 26.5 dB gain GPS panel mount systems.
Certified FAA TSO-C144 for GPS and GPS WAAS Class Gamma 1 equipment. Not compliant for GPS WAAS Class Gamma 2 and 3 applications.
Applications
Single engine piston aircraft for applications of this antenna design. Consult your FBO or installation shop for best application information.
Frequencies Covered
VHF 118-137 MHz
GPS 1575.42 MHz / 26.5 dB Gain
Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-00532 separately.
|
MODEL CI 2480-200
|
|
|
VHF Specifications
|
|
|
Frequency
|
118-137 MHz
|
|
VSWR
|
2.5:1
|
|
Polarization
|
Vertical
|
|
Radiation Pattern
|
Omnidirectional
|
|
Impedance
|
50 Ohms
|
|
Power Rating
|
50 Watts
|
|
GPS Preamplifier Characteristics
|
|
|
Frequency
|
1575.42 MHz
|
|
VSWR
|
2.0:1 Max.
|
|
Polarization
|
RHCP
|
|
Radiation Pattern
|
Hemispherical
|
|
Impedance
|
50 Ohms
|
|
Gain
|
26.5 dB
|
|
DC Voltage
|
+5 Vdc
|
|
DC Current
|
50 mA Maximum
|
|
Noise Figure
|
3.8 dB Maximum
|
|
Mechanical/ Environmental
|
|
|
Weight
|
0.6 lb. Maximum
|
|
RTCA Env. / TSO
|
DO 160D / C37d, C38d, C144
|
|
Connectors
|
VHF-BNC / GPS-TNC
|
