Frequency 108-118 MHz (VOR/ LOC) 329-335 MHz (Glide Slope)
VOR/ Glide Slope High Performance Navigation Antenna Set is designed for mounting on the aircraft vertical stabilizer or helicopter tail boom. Features low weight/ drag, tubular structure to minimize helicopter rotor "down wash" forces, wide band/high efficiency electrical performance and DC grounding for lightning protection.
Set includes a pair (2) of "towel bar" sensor elements each with a single BNC output connector and a one-piece dual coax interconnect signal combiner harness with a single BNC connector output. Provides for a single cable routing to the avionics location.
Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-00532 separately.
Applications
Single and twin engine piston aircraft for applications of this antenna design. Consult your FBO or installation shop for best application information.
Approved for light helicopter installations.
|

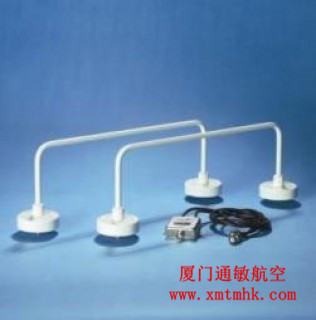

MODEL CI 205-3 TOWEL BAR SET
|
|
|
Electrical
|
|
|
Frequency
|
108-118 MHz (VOR /LOC) |
|
VSWR
|
5.0:1 108-118 MHz (VOR /LOC)
5.0:1 329-335 MHz (Glide Slope) |
|
Polarization
|
Horizontal
|
|
Radiation Pattern
|
Omnidirectional
|
|
Impedance
|
50 Ohms Nominal
|
|
Power
|
Receive Only
|
|
Mechanical
|
|
|
Weight
|
1.75 lb.
|
|
Height
|
5.25 in.
|
|
Material
|
Derlin Mounts / Aluminum "Towel Bar"
|
|
Finish
|
Polyurethane Enamel
|
|
Connector
|
BNC (Female)
|
|
Enviromental
|
|
|
Temperature
|
-55C- +85C
|
|
Altitude
|
50,000 ft
|
|
Airspeed
|
300 Knots TAS @25,000 ft.
|
|
Federal Specifications
|
|
|
RTCA Environmental
|
DO-160C
|
|
FAA TSO
|
C34c, C36c, C40c
|
|
RTCA MOPS
|
DO-196
|
